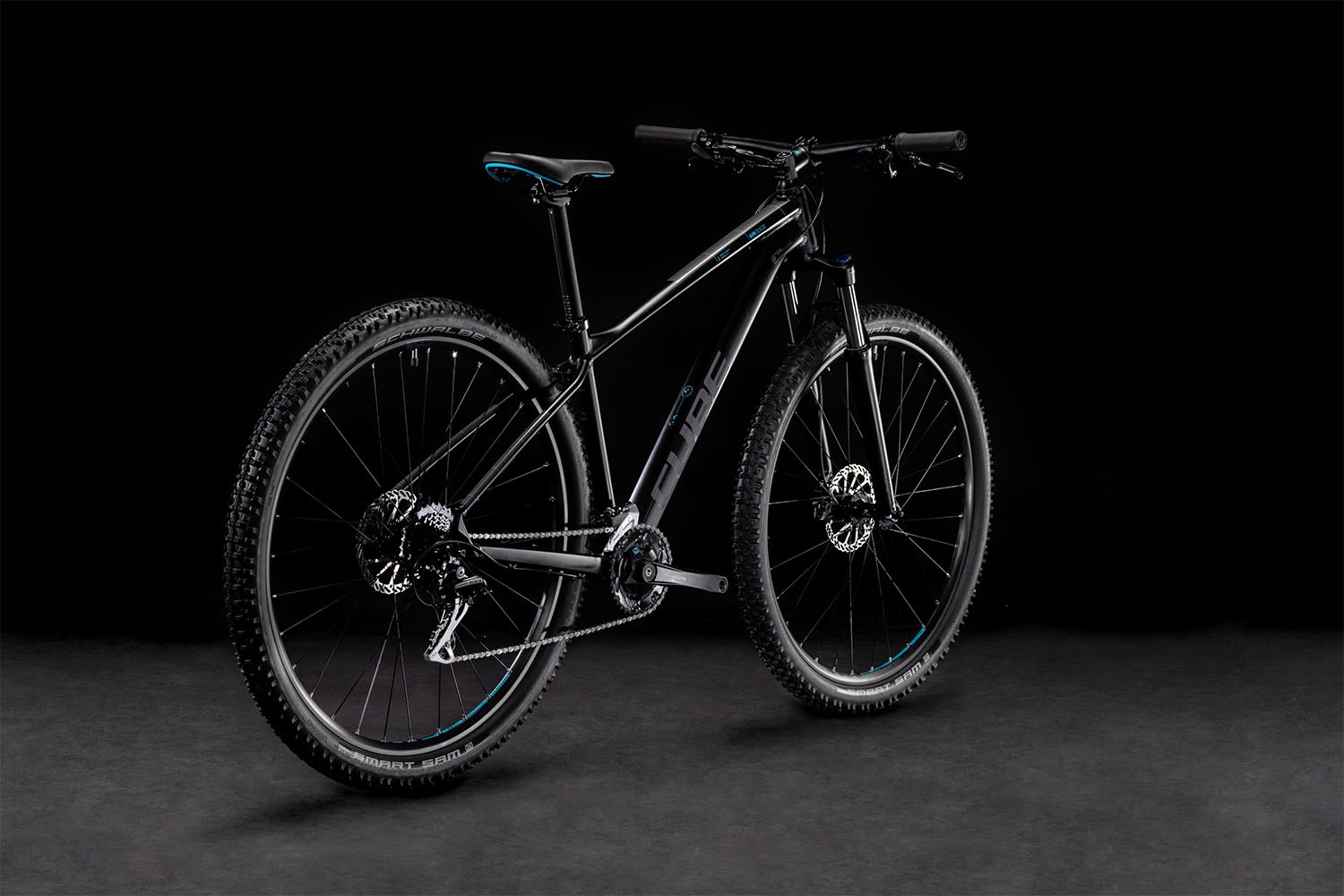

CUBE AIM RACE

Beauty is more than just a surface: Aim's sleek look is the result of smoothly welded joints between the head tube and seat stays. It's equipped with internal cable routing, ensuring long-lasting use and easy maintenance. Carefully hidden rack and mudguard mounts allow for quick and practical adaptation for longer tours or weekend getaways.

Updated geometry includes a lower top tube for safer handling, while still providing enough room for wide, grippy, and comfortable 2.25" tires. Cube's SizeSplit system offers an expanded size range, meaning no matter your height, there's an Aim model to fit you perfectly.

Maximum load capacity (including bike weight): 115 kg

Size Split:

• 14” (XS), 16” (S) = 27.5”
• 18”(M), 20”(L), 22”(XL), 24”(XXL) = 29”

Specifications

• Frame: Aluminum Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
• Fork: SR Suntour XCT Disc, 100mm, Lockout
• Fork bearing: CUBE FPH868, Semi-Integrated
• Handlebar bracket: CUBE Performance Stem Race, 31.8mm
• Steering wheel: CUBE Rise Trail Bar, 680mm
• Handlebars / Handlebar tape: ACID React
• Front derailleur: Shimano FD-M315, Top Swing, 31.8mm clamp
• Rear derailleur: Shimano RD-M3020, 8 gears
• Gear levers: Shimano SL-M315, Rapidfire-Plus

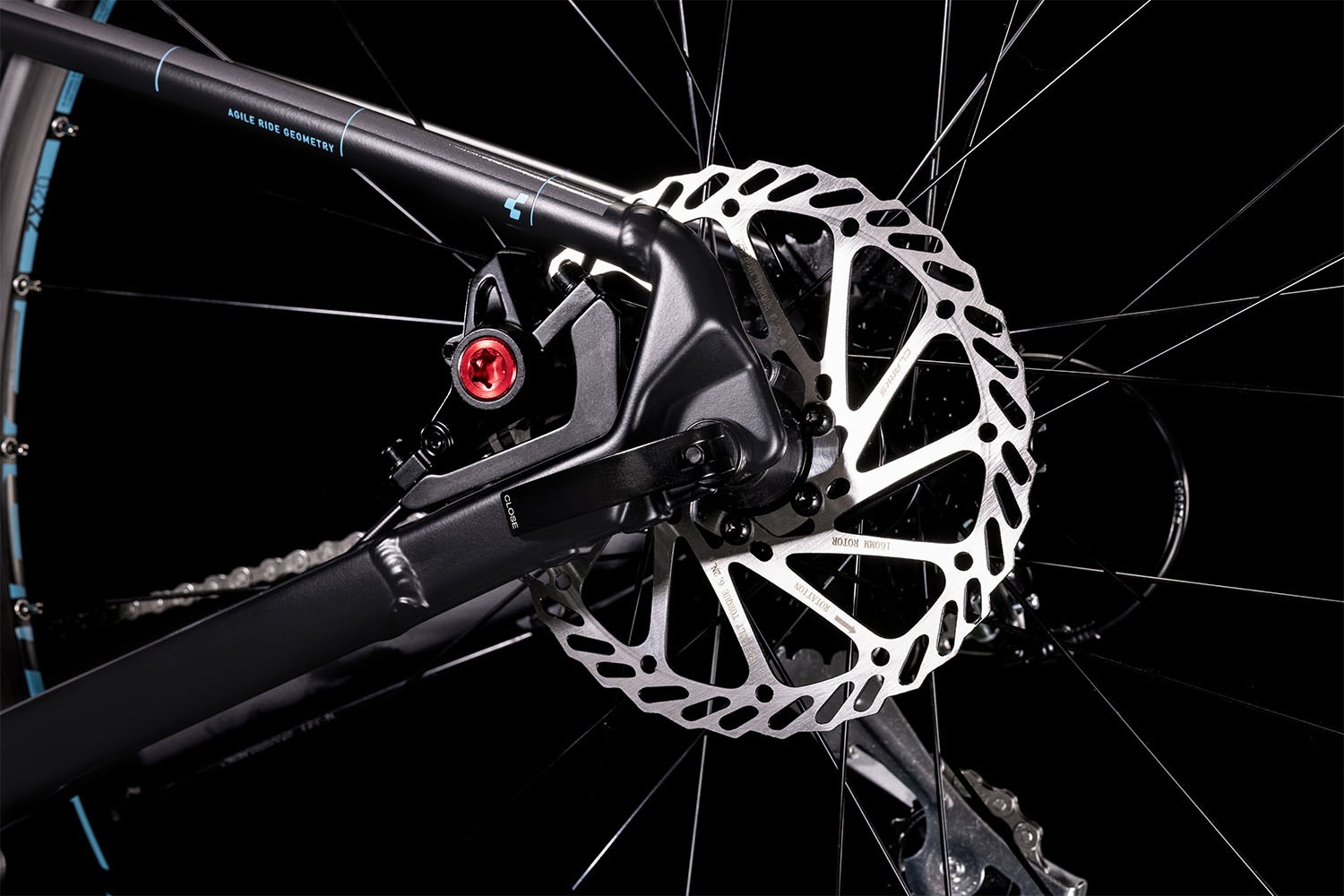

• Brakes: Clarks Clout 1, Hydraulic disc brakes PM/FM (180/160)
• Drive axle: Thun Paso-ML, 73mm BSA
• Driver: Shimano FC-M315, 36x22T, 170mm
• Pedals: ACID PP MTB
• Chain: KMC Z8.3
• Cassette: Shimano CS-HG31, 11-34T
• Front hub: Shimano HB-TX505, QR, Centerlock
• Rear hub: Shimano FH-TX505, QR, Centerlock
• Rims / Wheels: CUBE ZX20, 32H, Disc
• Coats: Schwalbe Smart Sam, Active, 2.25
• Seat: Natural Fit Venec Lite
• Seat support: CUBE Performance Post, 27.2mm
• Weight: 14.3 kg
