CUBE AIM PRO

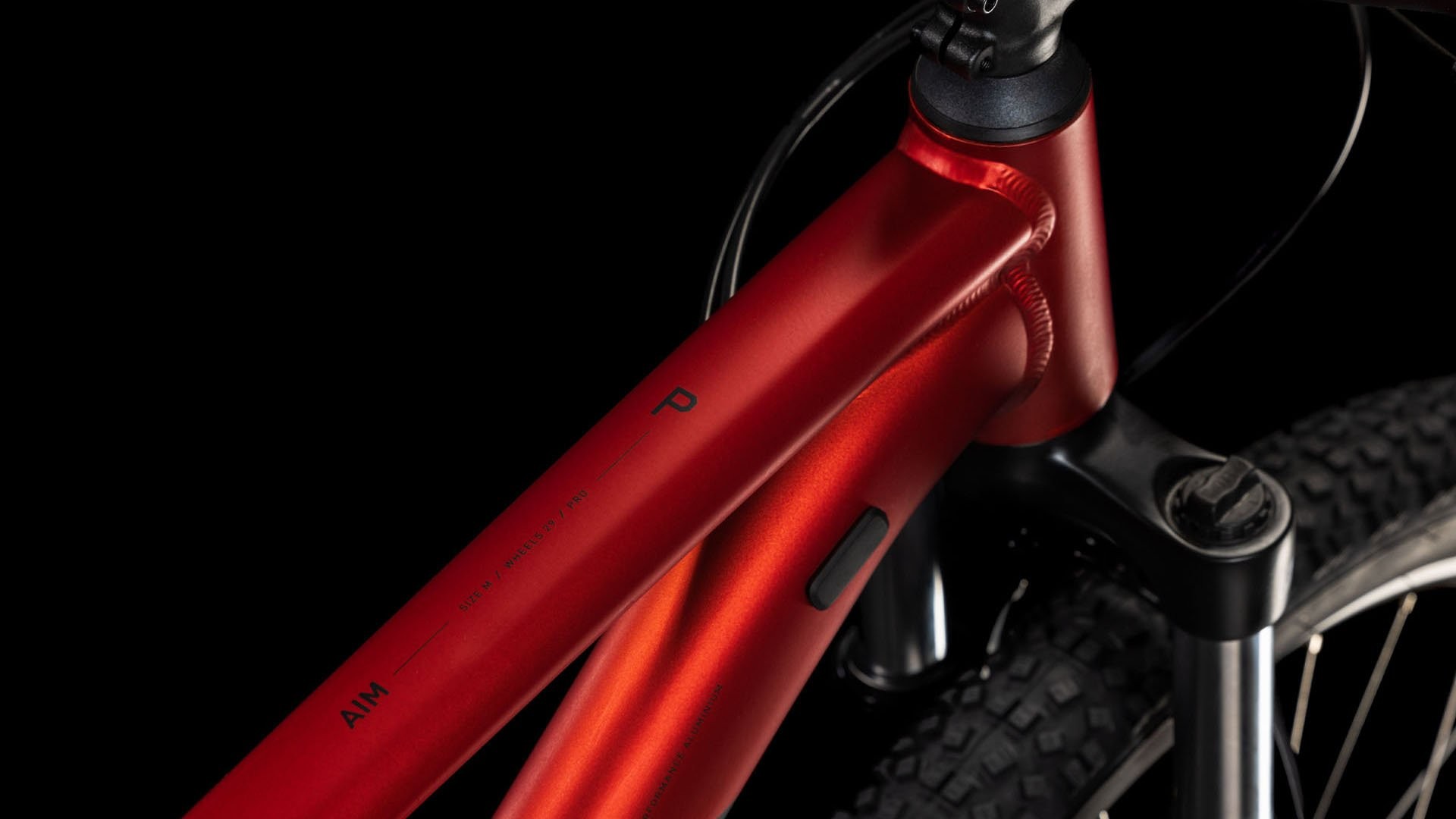

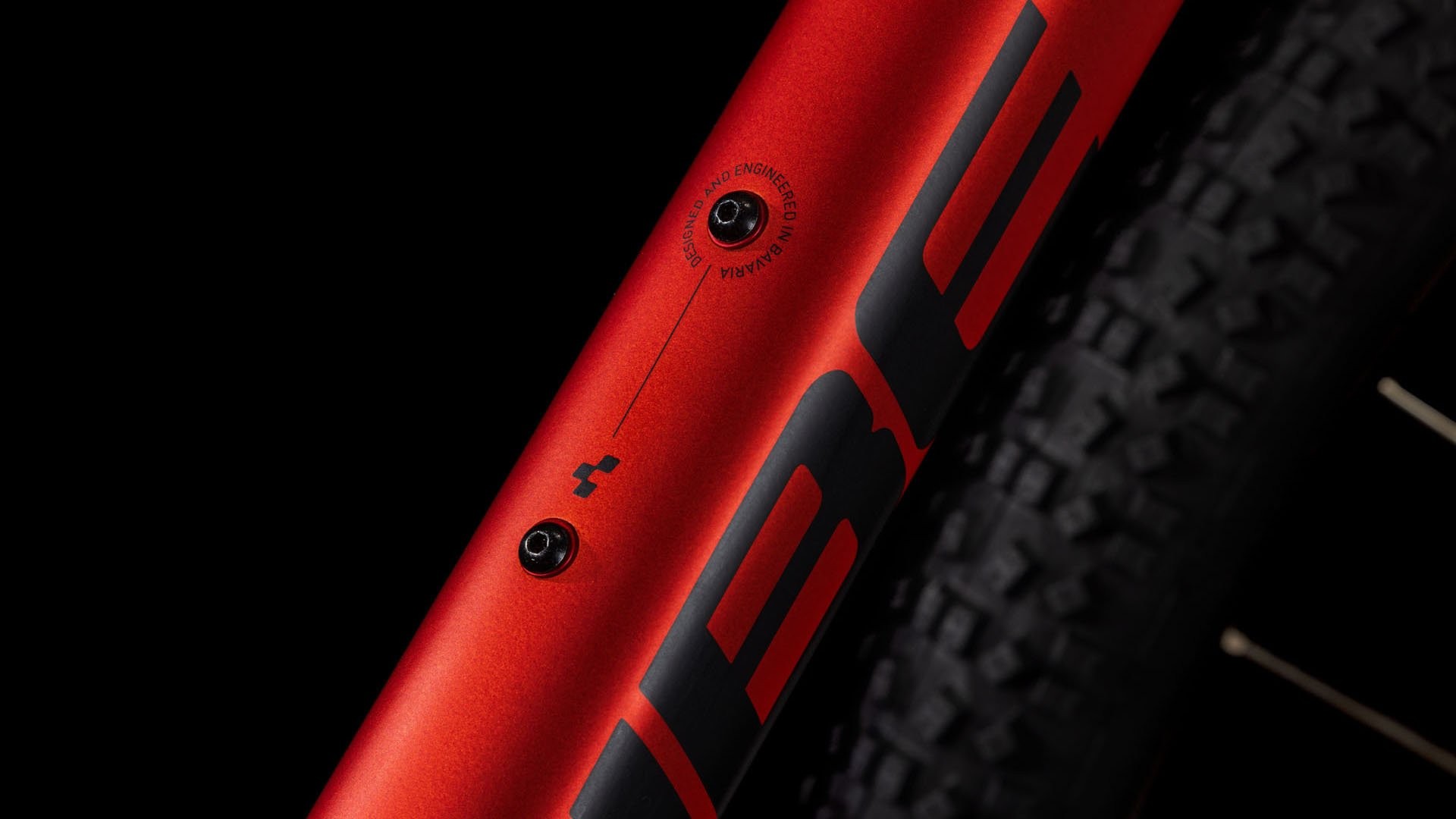

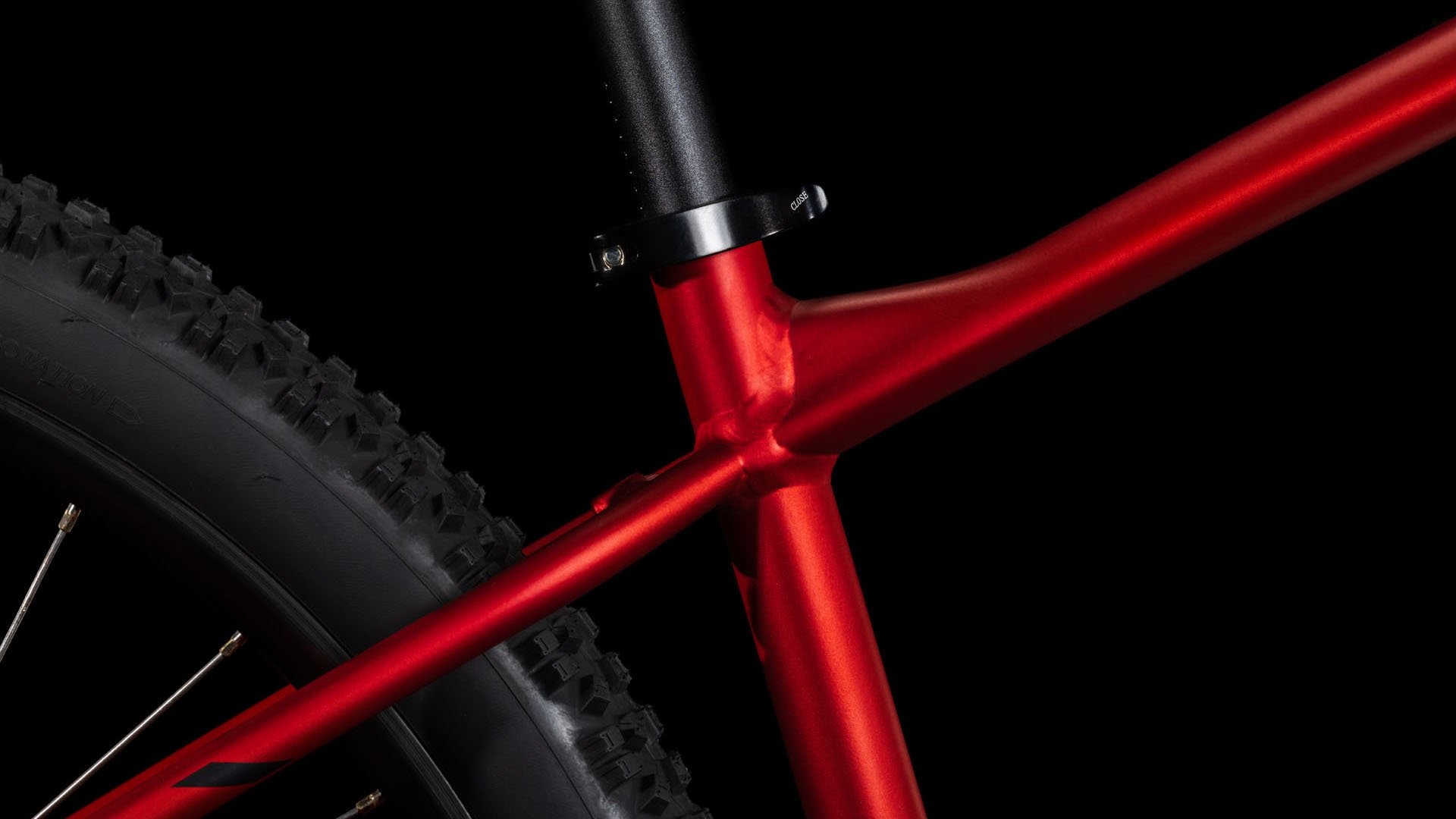

Beauty is more than just superficial: Aim's elegant look owes smooth welded joint head tube and seat tube. It has internal cable routing, which ensures long-lasting operation and easy maintenance. Carefully hidden brackets for the trunk and fenders allow quick, easy and elegant bike transformation, which is why ideal for longer trips or weekend trips.

Updated geometry includes lower upper tube, which allows safer operation and offers enough space for wide, grippy and comfortable 2.25-inch tires. Cube's SizeSplit system offers an expanded size range, so no matter your height, there's an Aim that fits you perfectly.

Maximum load capacity (including bike weight): 140 kg

Size Split:

• 14” (XS), 16” (S) = 27.5”

• 18”(M), 20”(L), 22”(XL), 24”(XXL) = 29”

Specifications

• Frame: Aluminum Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount

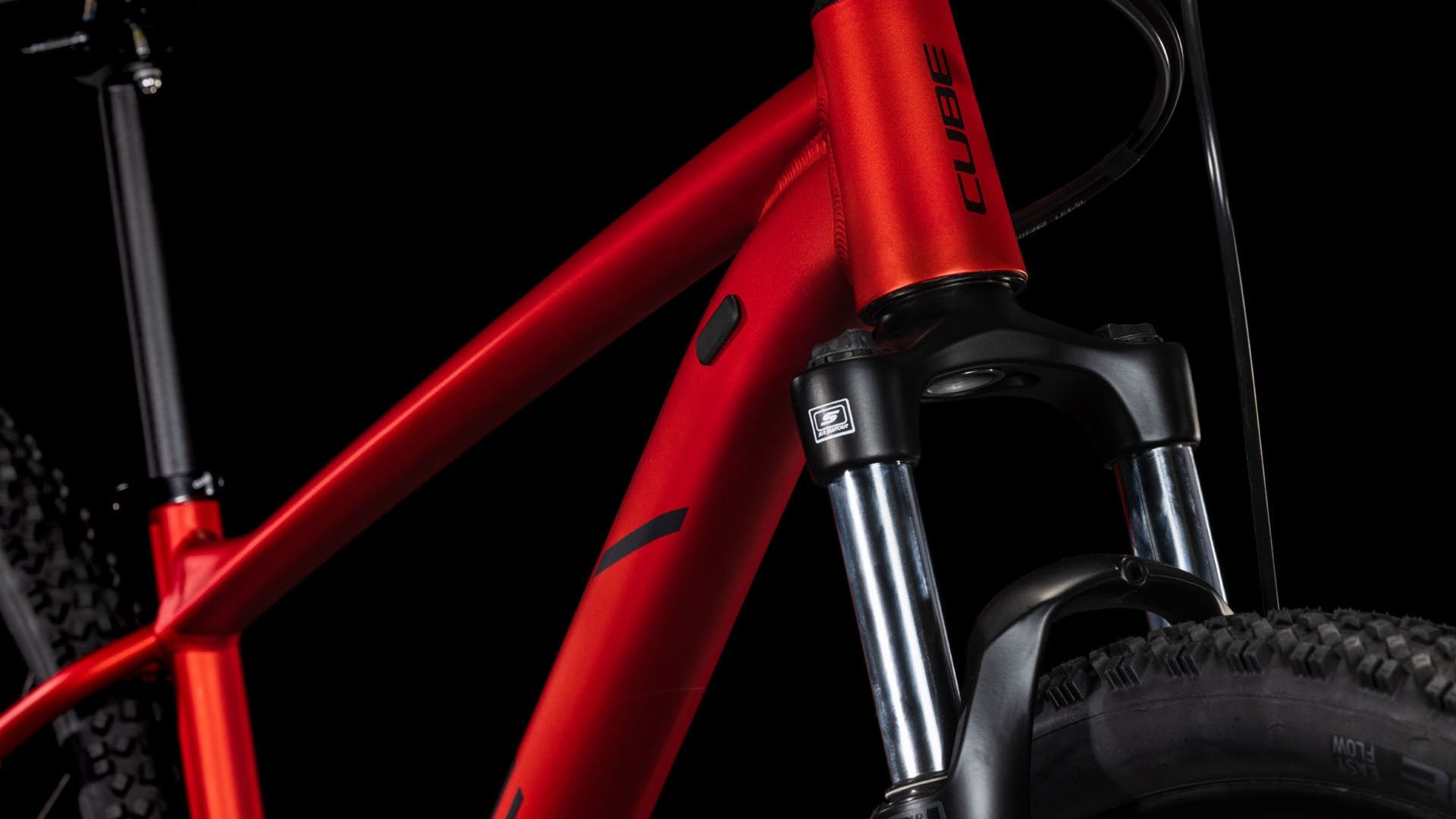

• Fork: SR Suntour XCT Disc, 100mm
• Fork bearing: CUBE FPH868p, Tapered, Semi-Integrated
• Handlebar bracket: CUBE Performance Stem, 31.8mm
• Steering wheel: CUBE Rise Trail Bar, 680mm
• Handlebars / Handlebar tape: ACID React
• Rear derailleur: Shimano Cues RD-U4000-GS, 9 gears
• Gear levers: Shimano Cues SL-U4010, Rapidfire-Plus
• Brakes: Tektro HD-M275, hydraulic disc brakes, PM/FM (160/160)
• Drive axle: Thun Paso-ML, 73mm BSA
• Driver: ACID, 32T, 170mm
• Pedals: CUBE PP MTB
• Chain: KMC eGlide
• Cassette: Shimano Cues CS-LG300, 11-46T
• Front hub: CUBE Alloy Light, QR, 6-Bolt
• Rear hub: CUBE Alloy Light, QR, 6-Bolt
• Rims / Wheels: CUBE EX25, 32H, Disc, Tubeless Ready
• Seat: ACID Wreath Lite
• Seat support: CUBE Performance Post, 27.2mm
• Weight: 14.3 kg
