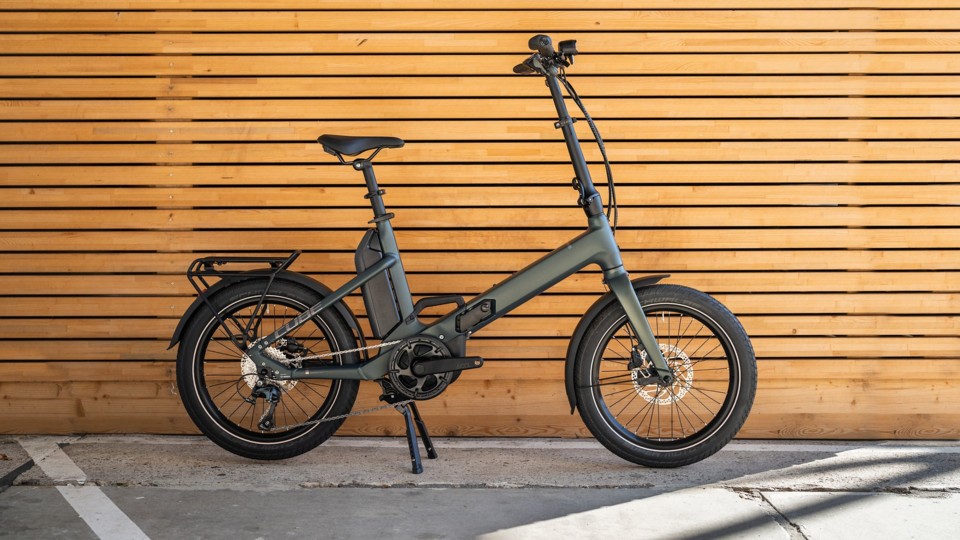

CUBE FOLD HYBRID 500

The Cube Fold Hybrid 500 is a folding electric bike that sets new standards in terms of flexibility, mobility and functionality. Its sophisticated appearance is no coincidence either - form often follows function.

With an advanced folding mechanism and integrated carrying handle, it is easy to store or transport, taking up little space. The adjustable seatpost and handlebars can be quickly adjusted to almost any rider's height.

It is equipped with mudguards, a stable double kickstand and a sturdy rear rack. There is the option of mounting a front rack and a wide range of bags and baskets that attach quickly and easily with innovative mechanisms - for everything you need on the go.

Maximum load capacity (including bike weight): 142 kg

Specifications

• Engine: Bosch Drive Unit Active Plus Gen. 3 (50 Nm), Cruise (250 W)
• Battery: Bosch PowerPack 500
• Charger: Bosch 2A
• Display: Bosch Purion

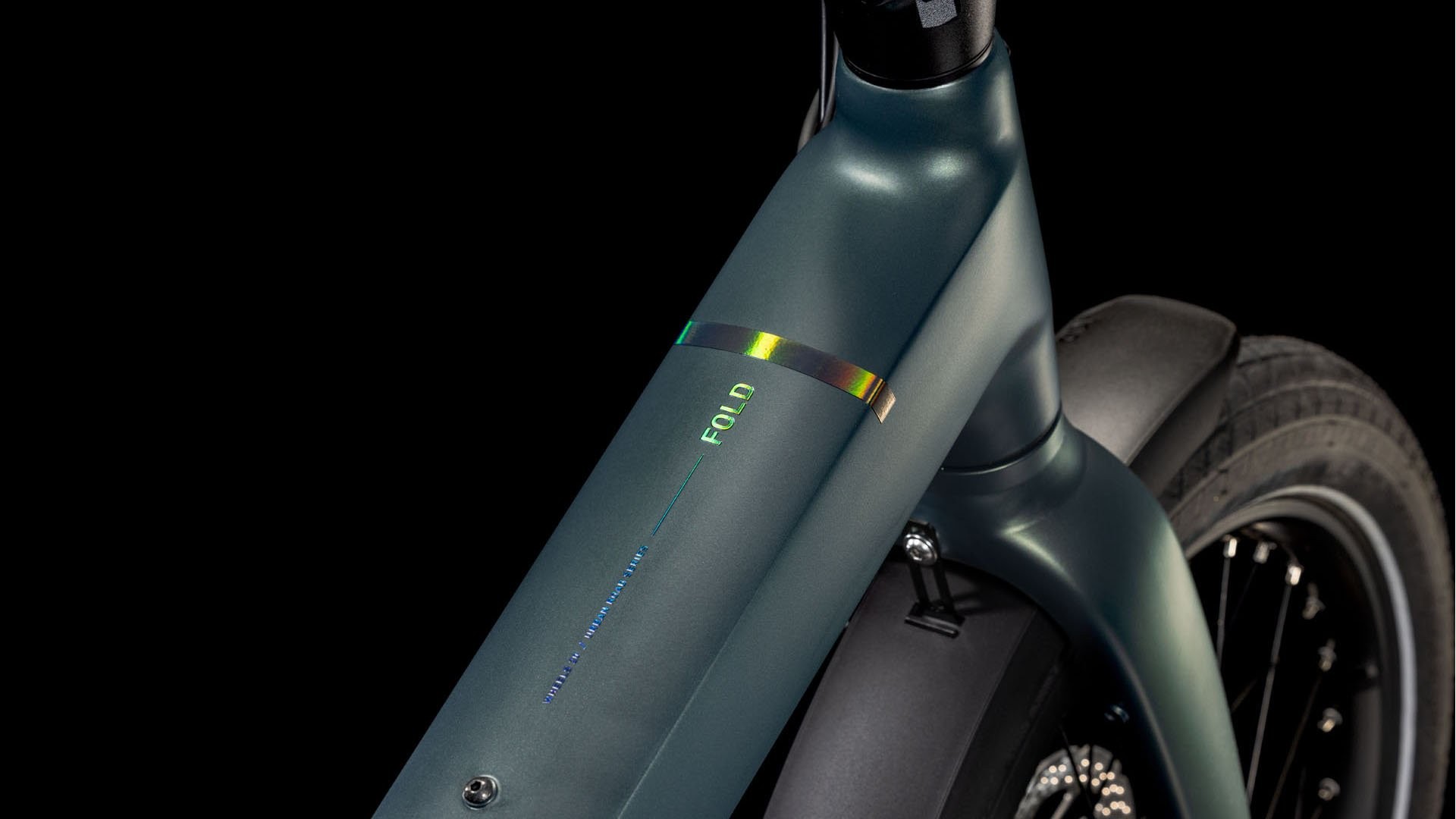

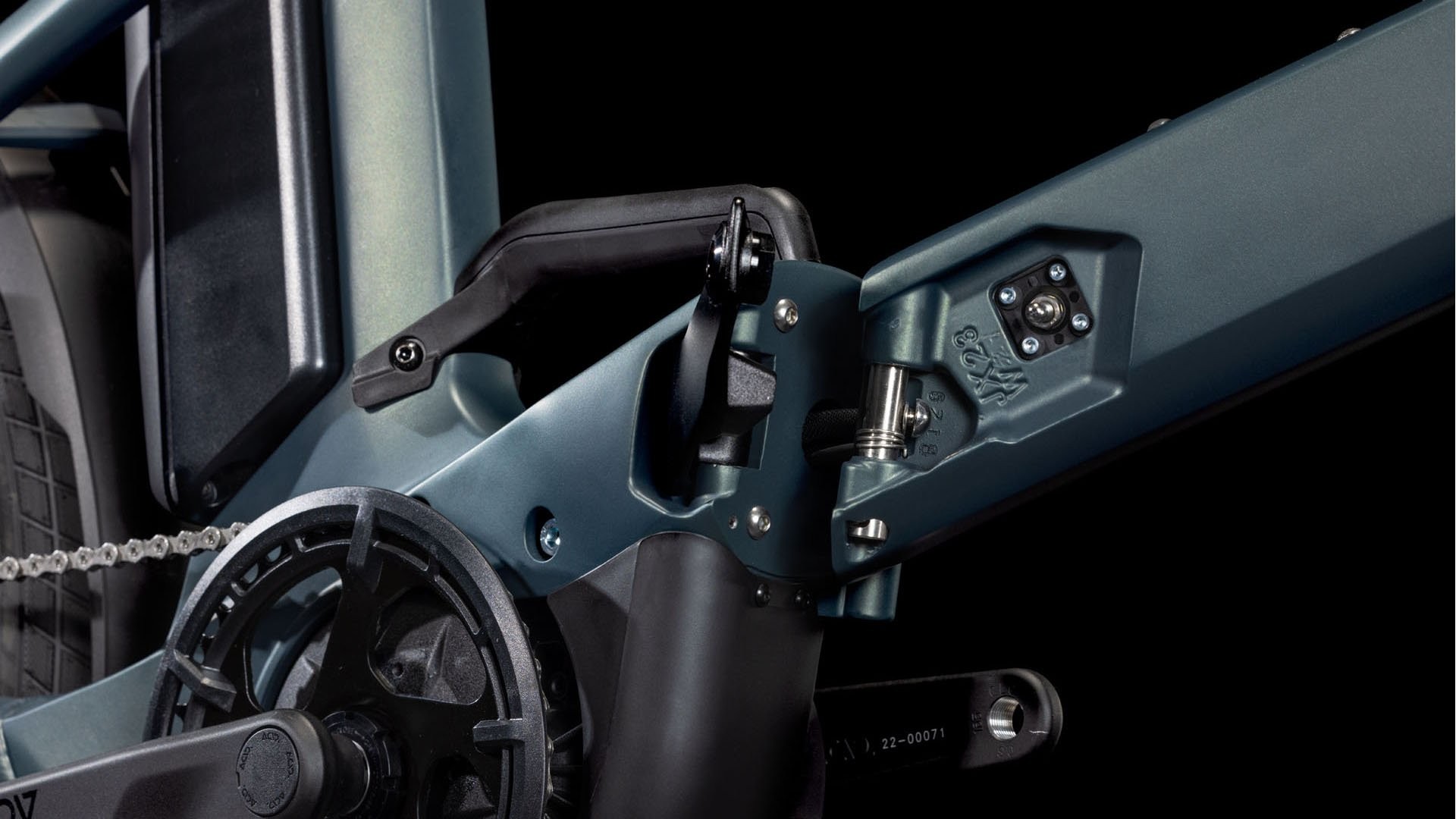

• Frame: Superlite Aluminum, Comfort Ride Geometry, semi-integrated rack, front rack ready, sliding dropout, integrated folding technology, handle

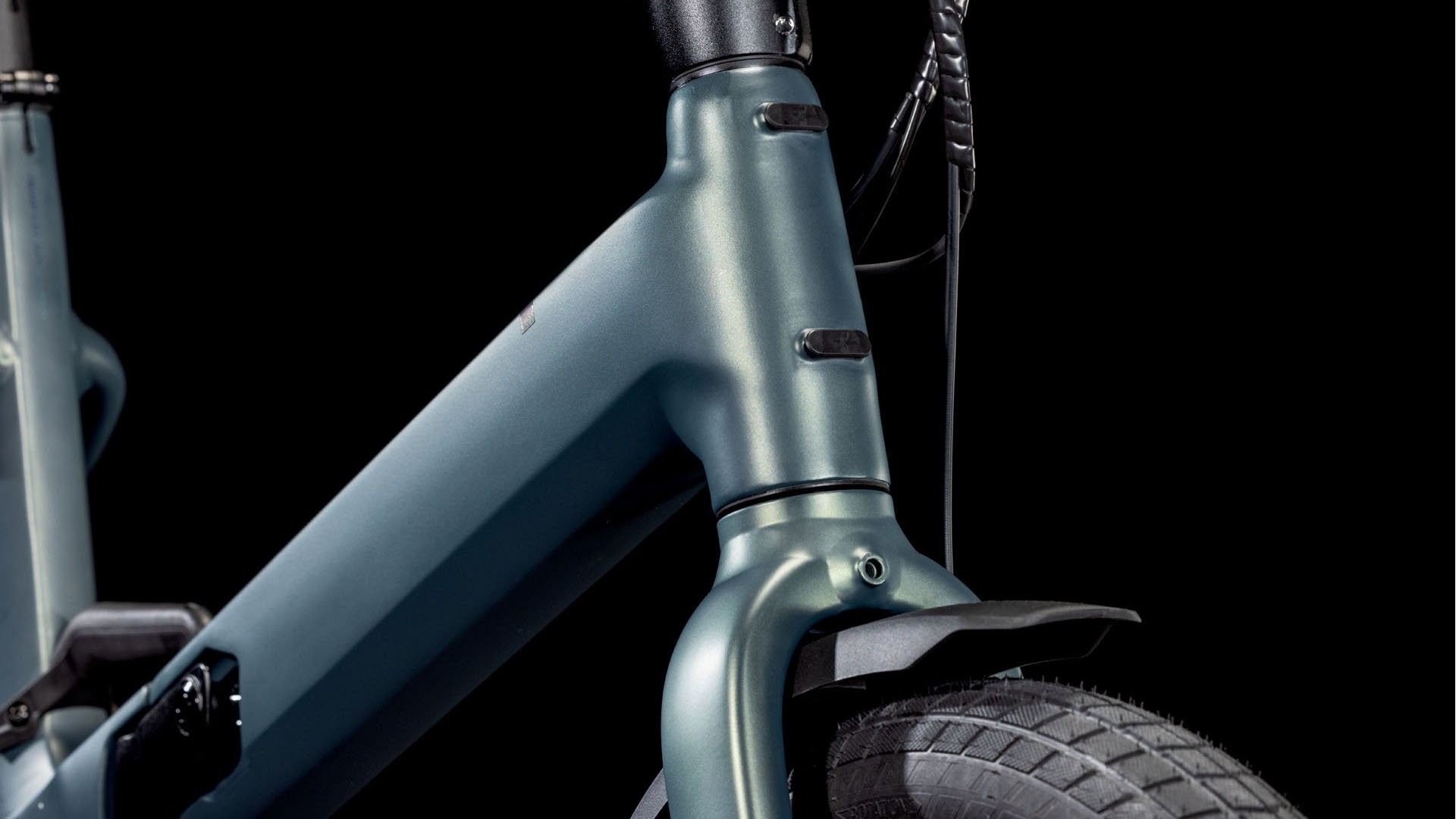

• Fork: Rigid aluminum fork, 20″
• Fork bearing: ACROS AZF-1038, ZS 44/56 mm
• Stem: Cube, foldable and adjustable, 25.4 mm clamp

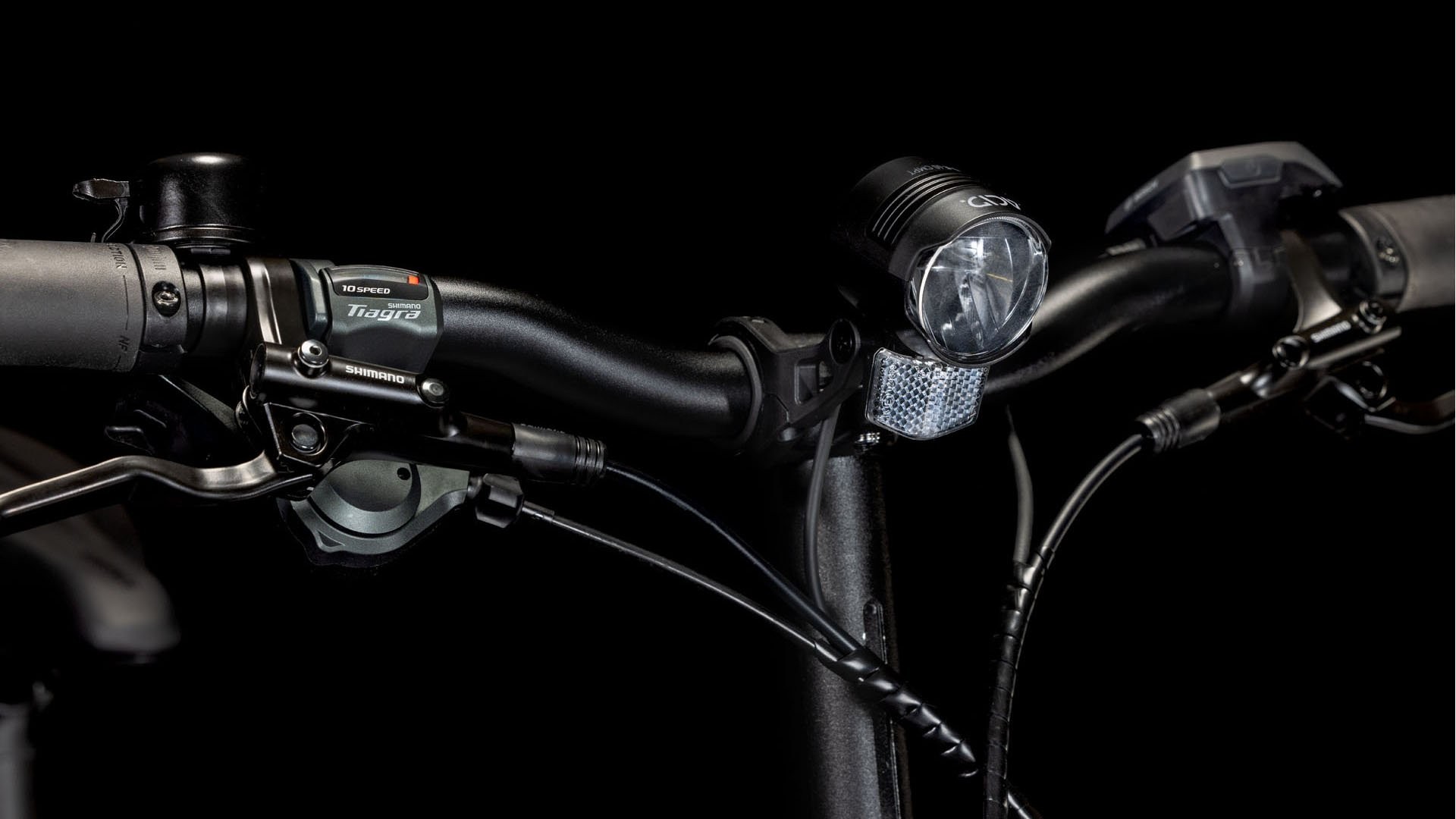

• Handlebar: CUBE Comfort Trail Bar, 680mm, 25.4mm
• Grips: ACID Travel Comfort
• Rear derailleur: Shimano Tiagra RD-4700GS, 10 gears
• Gear shifters: Shimano Tiagra SL-4700
• Brakes: Shimano BR-MT200, hydraulic disc brakes (180/180 mm)
• Crank: ACID Trekking Hybrid, 42T with chain guard
• Pedals: Foldable aluminum
• Chain: KMC X10
• Cassette: Shimano CS-HG500, 11–34T
• Hubs: Shimano HB/FH-QC300, Centerlock, QR
• Rims: CUBE EX30, 32 holes, Disc, Tubeless Ready
• Tires: Schwalbe Super Moto-X, Double Defense, 62-406
• Saddle: Natural Fit Sequence
• Seat post: Satori Sorata, 34.9 mm, telescopic 280–440 mm
• Front light: ACID PRO-E 60, 12V DC
• Rear light: ACID Mudguard PRO-E, 12V DC
• Bell: Easy Bell
• Mudguards: ACID 75, BB-Mount

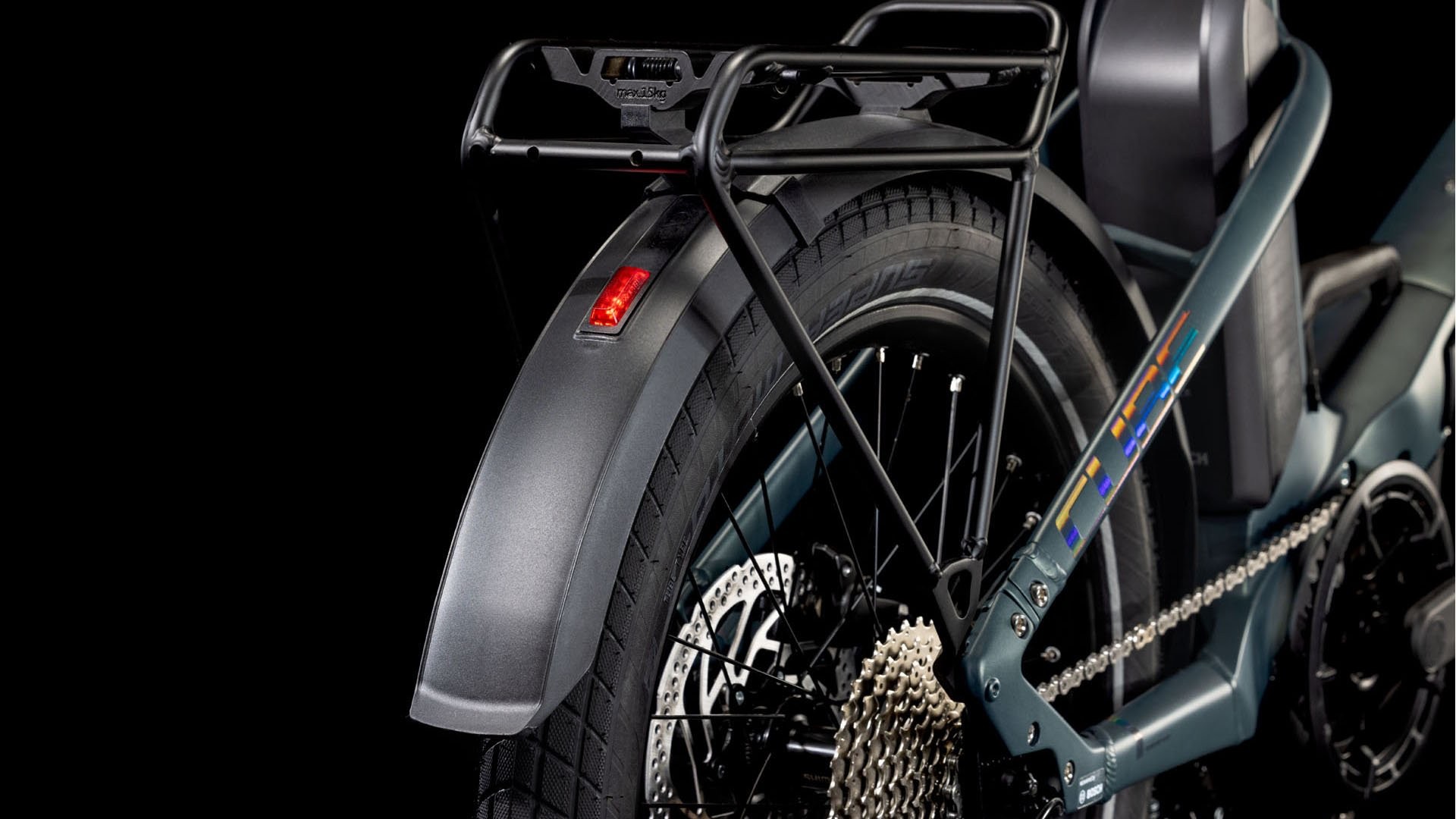

• Luggage carrier: ACID 20″ semi-integrated, RILink compatible
• Stand: Bipedal
• Weight: 24.5 kg
